Regional and Mesoscale Meteorology Branch

TC Realtime

SH252022 - Tropical Cyclone (<64 kt) KARIM

Forecast Track

Time of Latest Forecast: 2022-05-11 06:00

Forecast Hour Latitude Longitude Intensity
0 -19.1 95.1 45
12 -18.4 96.8 40
24 -16.8 97.8 35
36 -15.0 98.0 30
48 0.0 0.0 0
72 0.0 0.0 0
96 0.0 0.0 0
120 0.0 0.0 0

Forecast Track Archive

About Forecast Track

Track History

Synoptic Time Latitude Longitude Intensity
2022-05-11 18:00 -18.8 97.9 40
2022-05-11 12:00 -18.8 96.6 40
2022-05-11 06:00 -19.1 95.1 45
2022-05-11 00:00 -19.6 93.9 45
2022-05-10 18:00 -18.7 93.2 50
2022-05-10 12:00 -17.6 92.5 55
2022-05-10 06:00 -16.6 92.0 60
2022-05-10 00:00 -15.4 91.6 60
2022-05-09 18:00 -14.1 91.1 60
2022-05-09 12:00 -13.2 90.9 60
2022-05-09 06:00 -12.3 90.8 60
2022-05-09 00:00 -11.5 90.9 60
2022-05-08 18:00 -11.1 90.7 60
2022-05-08 12:00 -10.8 90.5 60
2022-05-08 06:00 -10.3 90.3 55
2022-05-08 00:00 -10.0 90.6 55
2022-05-07 18:00 -9.1 90.3 45
2022-05-07 12:00 -8.5 90.0 40
2022-05-07 06:00 -7.6 89.5 30

About Track History

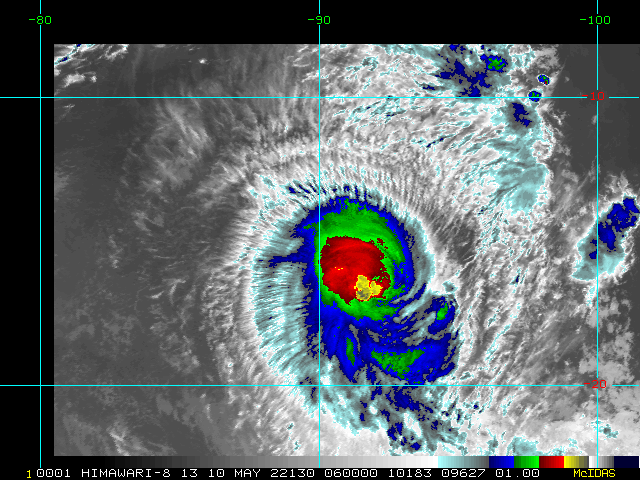

Enhanced Infrared (IR) Imagery (4 km Mercator)

Loop | Latest Image | Archive | About

Time of This Image: 2022-05-10 06:00

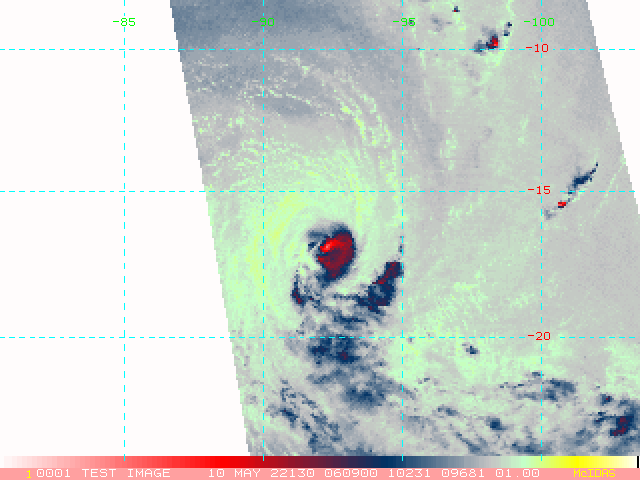

AMSU Microwave 89 GHz Imagery (4 km Mercator)

Loop | Latest Image | Archive | About

Time of This Image: 2022-05-10 06:09

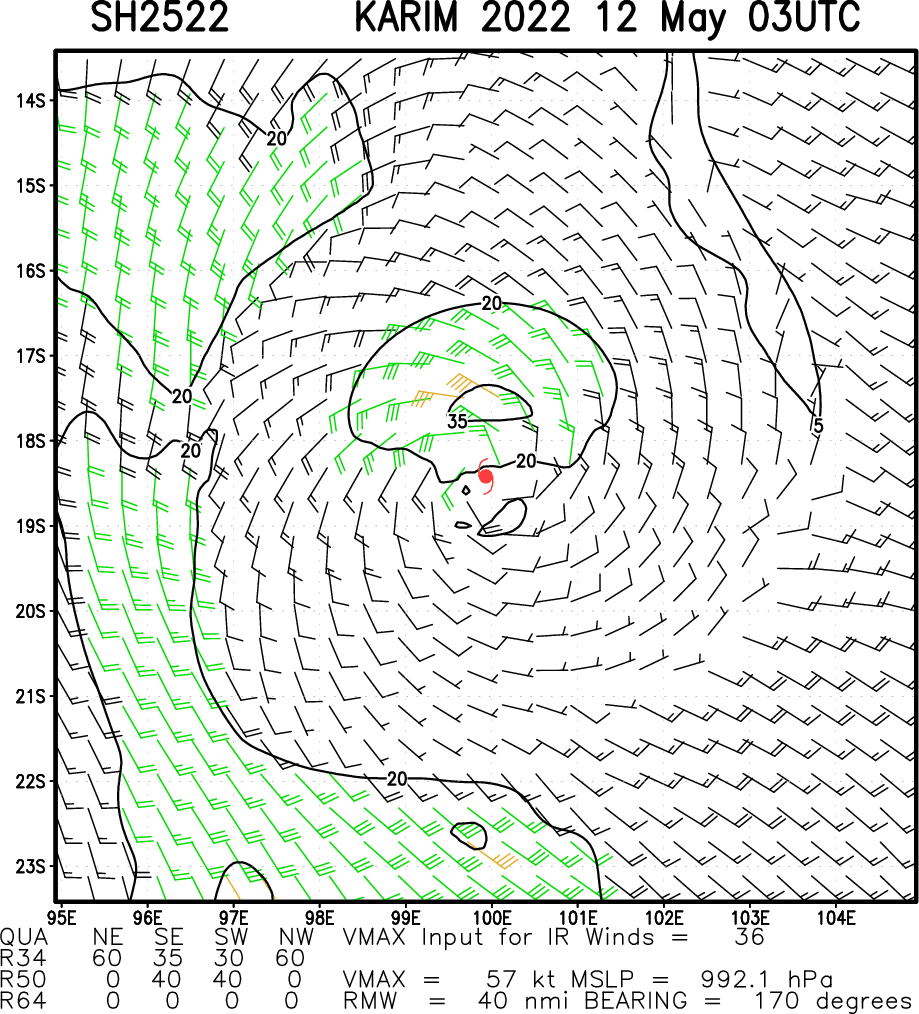

Multiplatform Satellite Surface Wind Analysis (Experimental)

Latest Image | Archive | About

Time of This Image: 2022-05-12 03:00

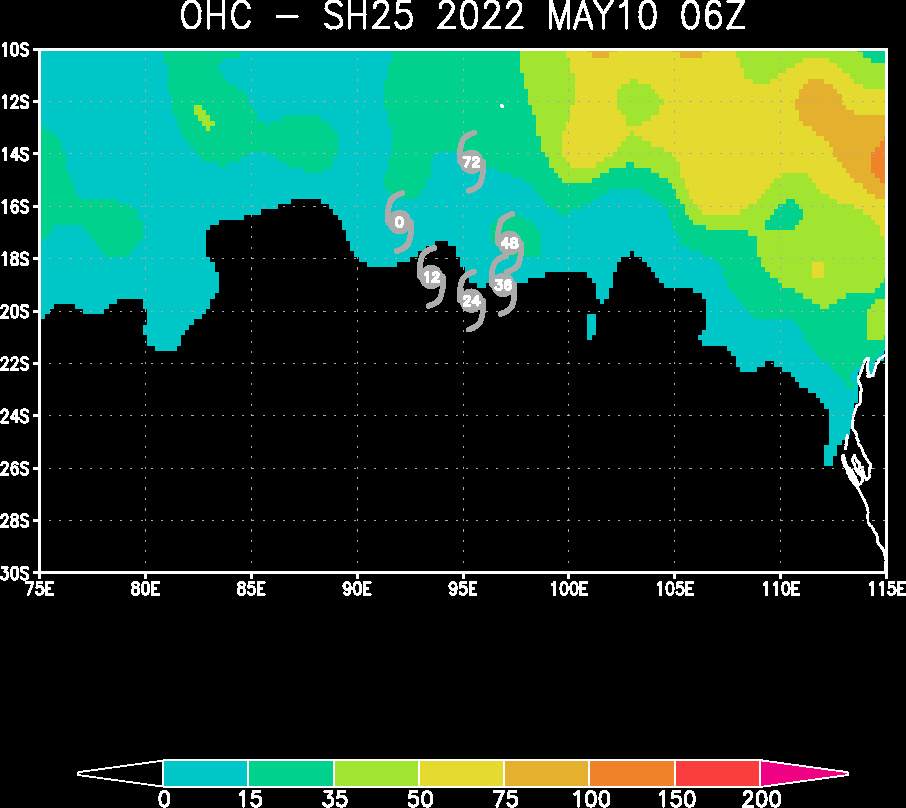

Ocean Heat Content & Forecast Track

Latest Image | Archive | About

Time of This Image: 2022-05-10 06:00

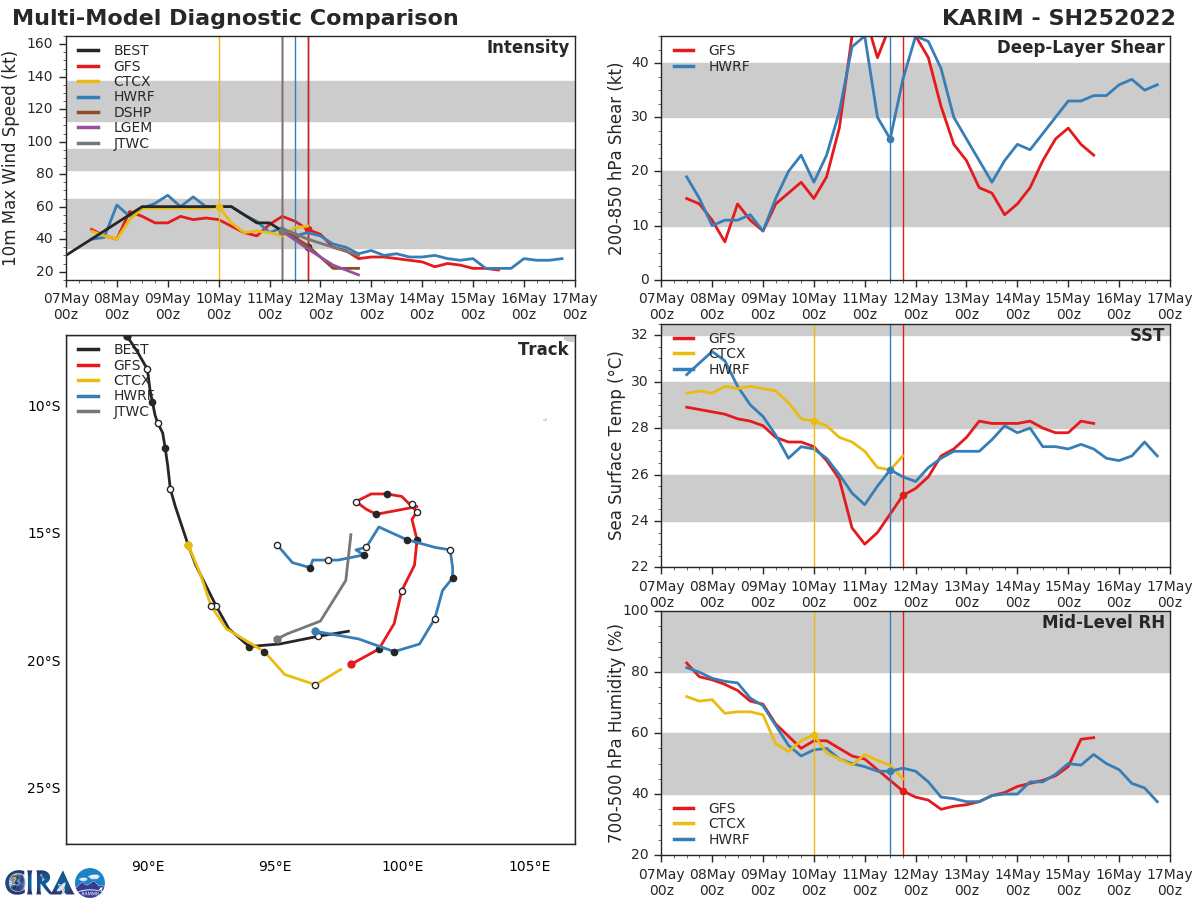

Model Diagnostic Plot

Loop | Latest Image | Archive | About

Time of This Image: 2022-05-12 00:00

RIPA Forecast

About

RIPA Storm Table

Please use the links below to view the text data for this product.

Latest Text File | | Archive | About

Time of This Image: 2022-05-11 18:00
