WP182018 - Tropical Storm YAGI

Forecast Track

Time of Latest Forecast: 2018-08-14 12:00

Forecast Hour Latitude Longitude Intensity
0 0.0 0.0 0
12 0.0 0.0 0
24 0.0 0.0 0
36 0.0 0.0 0
48 0.0 0.0 0
72 0.0 0.0 0
96 0.0 0.0 0
120 0.0 0.0 0

Forecast Track Archive

About Forecast Track

Track History

Synoptic Time Latitude Longitude Intensity
2018-08-14 12:00 37.7 117.5 20
2018-08-14 06:00 37.0 116.1 20
2018-08-13 12:00 33.1 116.4 20
2018-08-13 06:00 31.9 117.5 20
2018-08-12 18:00 28.9 120.6 40
2018-08-12 12:00 27.5 122.5 45
2018-08-12 06:00 26.6 123.7 35
2018-08-12 00:00 25.6 124.4 35
2018-08-11 18:00 25.2 125.4 35
2018-08-11 12:00 25.0 126.9 40
2018-08-11 06:00 25.1 128.2 35
2018-08-11 00:00 25.0 129.4 35
2018-08-10 18:00 24.3 130.8 35
2018-08-10 12:00 23.2 131.9 35
2018-08-10 06:00 22.7 132.0 35
2018-08-10 00:00 22.8 132.2 40
2018-08-09 18:00 22.2 133.1 40
2018-08-09 12:00 21.1 133.5 40
2018-08-09 06:00 20.6 133.1 35
2018-08-09 00:00 21.0 133.7 35
2018-08-08 18:00 20.6 134.3 35
2018-08-08 12:00 19.9 133.9 35
2018-08-08 06:00 19.5 133.4 35
2018-08-08 00:00 19.3 132.5 30
2018-08-07 18:00 19.1 132.4 30
2018-08-07 12:00 19.4 132.8 30
2018-08-07 06:00 19.2 132.5 25
2018-08-07 00:00 19.1 133.2 25
2018-08-06 18:00 18.8 133.4 25

About Track History

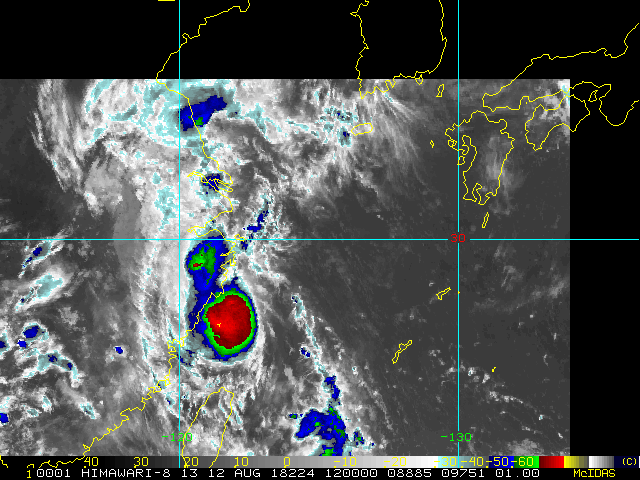

Enhanced Infrared (IR) Imagery (4 km Mercator)

Loop | Latest Image | Archive | About

Time of This Image: 2018-08-12 12:00

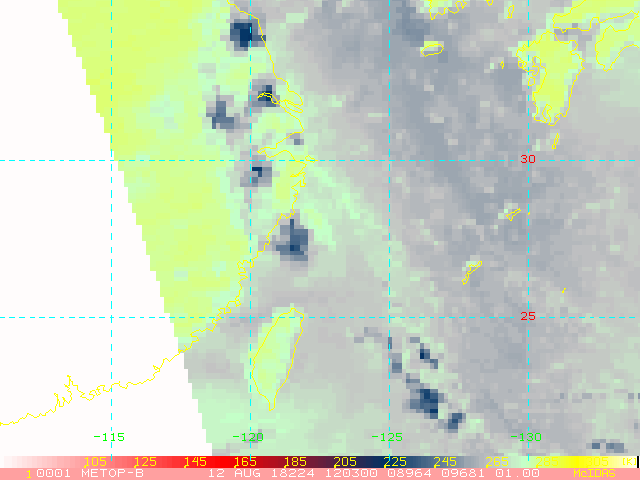

AMSU Microwave 89 GHz Imagery (4 km Mercator)

Loop | Latest Image | Archive | About

Time of This Image: 2018-08-12 12:03

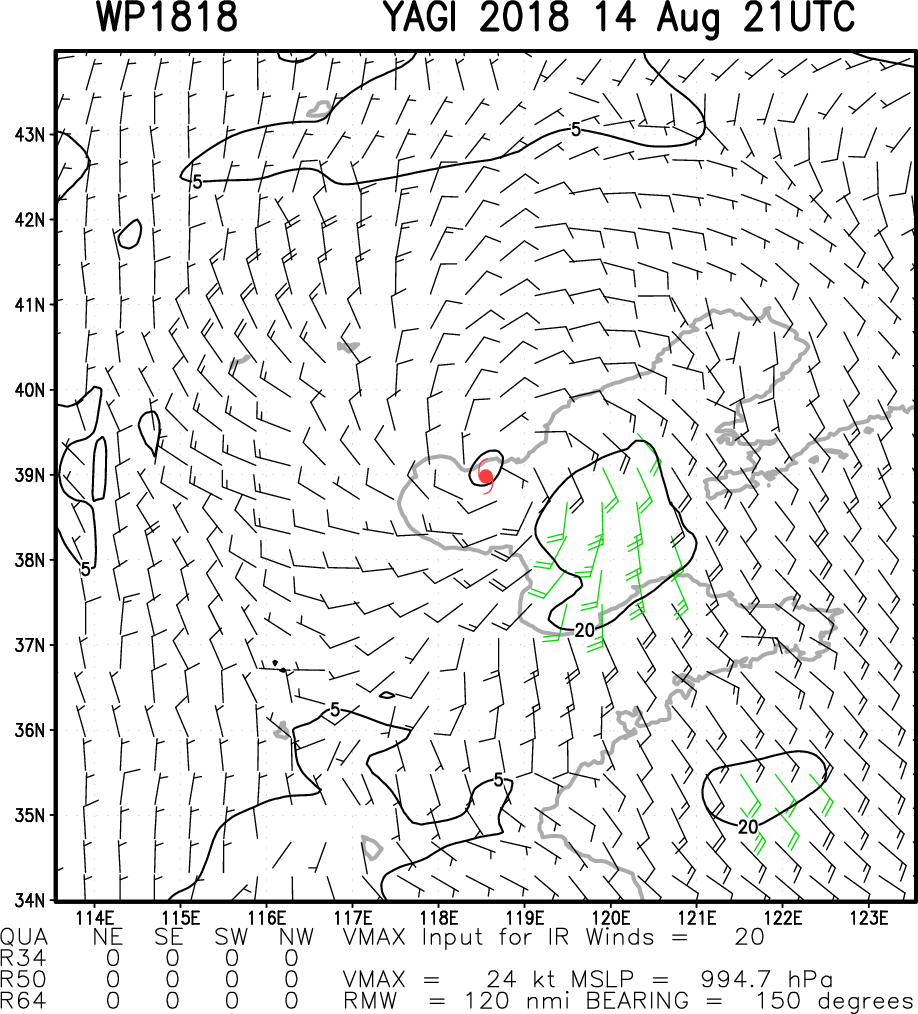

Multiplatform Satellite Surface Wind Analysis (Experimental)

Latest Image | Archive | About

Time of This Image: 2018-08-14 21:00

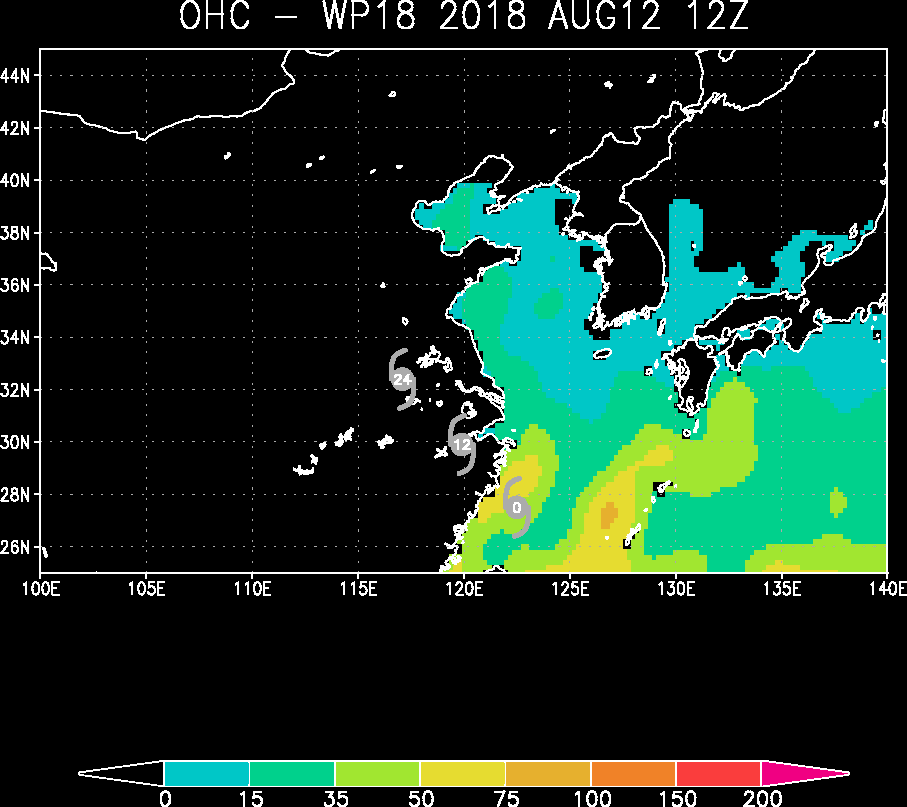

Ocean Heat Content & Forecast Track

Latest Image | Archive | About

Time of This Image: 2018-08-12 12:00

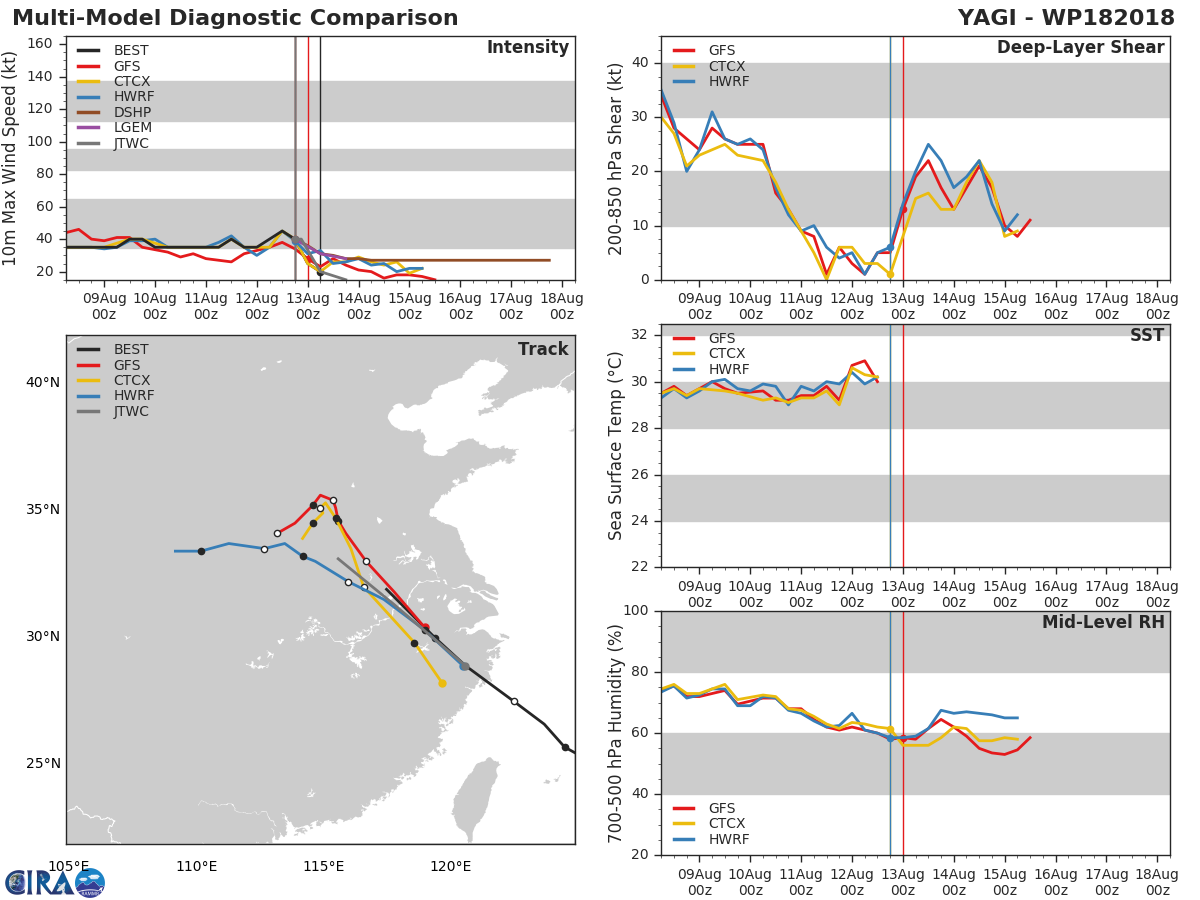

Model Diagnostic Plot

Loop | Latest Image | Archive | About

Time of This Image: 2018-08-13 06:00
